台湾普凯频闪仪系列>>带钢检品专用大功率频闪仪>>PK-DS-HS(PK-DS-120
& HS-150)
品检带钢表面之******利器!
大功率(120W)、超高亮度、高寿命之特性,可【2米远距离】安置照射,非常适合24小时×365天连续作业使用!

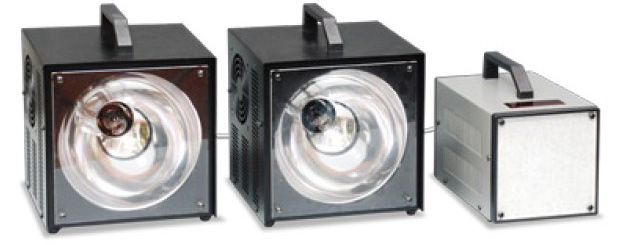

普凯首创之大功率闪频仪PK-DS-HS,涵盖了1台控制主机PK-DS-120,以及2个分离式灯盒HS-150,能投射出极强高亮之闪频,最适合应用于远距离之表面大面积检查
,也是一款频闪照明灯。
2个分离式灯盒,共计120W,可依其投射方向,选择加倍亮度之重叠画面,或是加宽面积之宽画面。
★

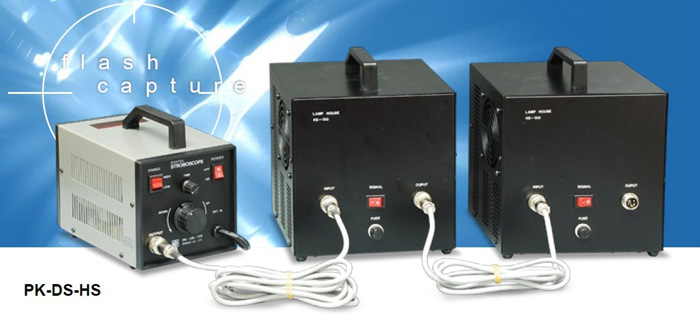

The innovative High-power Stroboscope PK-DS-HS comprises Control Unit
PK-DS-120 and 2 sets of separable Lamp Houses HS-150 to provide
extremely high illumination of strobes for distant surface inspection.
Because 2 sets of lamp houses totaling 120w are separated each other,
they are capable to project for a superimposed area or for a separated
wider area as you wish.
产品特点/Product
features:
■
分离式控制主机,具备【2米远距离】安置之检查与检测,也可安置更远(或更近)之距离照射,其投射到被检查物表面之亮度与安置距离成反比(即:安置距离越近亮度相应越强,安置距离越远亮度相应降低)。
■
采用德国制优异的长寿命灯管.
■
高精确石英电路,
±0.01%.
■
精密10圈之微细调器装置.

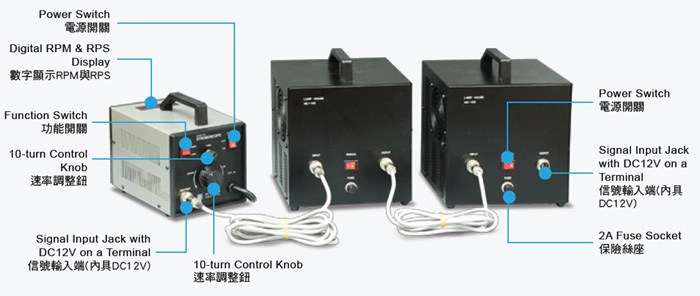

◆ Separated Control Unit is capable for distant control.
◆ Excellent long-life lamps are all made in German.
◆ Quartz crystal accuracy, ±0.01%.
◆ Equipped with 10-turn control knob.
普凯自从1986年成功地推出第一台宽照型闪频仪以来,一直是是亚洲的领导厂商之一。如今,经过30年以上的专精研究,提供了35种以上台湾制造的高信赖闪频仪,可让客户做最适当的选择,其中表面检查用之机种,最为齐全。
★Pokai has been one of leaders in the
stroboscope industry in Asia since it introduced the first broadband
stroboscope in 1986. Today, Pokai’s extensive efforts in R&D enable it
to offer a full line of various reliable stroboscopes, all devoted and
produced in Taiwan. Among these different types, the surface-inspection
models are the most complete.
SPECIFICATIONS/
規格表:
产品名称Name of Product |
大功率超亮型频闪仪
High-power Stroboscope |
产品型号Model No. of Product |
PK-DS-HS |
组成单元Comprised Units |
控制单元Control Unit |
灯盒单元Lamp Houses |
每单元型号Model No. of Unit |
PK-DS-120 |
HS-150 |
功能描述
Description |
大功率120W超亮型频闪仪,可【2米远距离】安置照射,照射面积广,亮度强,非常适合24小时连续作业使用,
也是一款频闪照明灯;另有【远距离80cm内安置照射】高功率宽照型频闪仪PK-DS-180L43可选;另有【近距离40cm内安置照射】频闪仪可选:1. 锂电池充电式频闪仪PK-506B;2. 手提便携式频闪仪PK-DS-112U机种
;3. 多联宽照型频闪仪PK-DS-180L系列;点击查看 |
频率范围
Flash Rate Ranges |
200 ~ 5000FPM
备注:每分钟频闪次数 |
解析度
Resolution |
±0.1FPM |
|
数字显示屏
Display |
5位LED数字显示屏
5-digit LEDs to
display FPM |
|
精确度
Accuracy |
±0.01% of setting |
|
氙气灯控制
Flash Rate Control |
通过10圈旋钮提供触发信号
Trigger control
by10-turn Knob |
接受控制单元信号作出同步闪光
Passively
synchronized from PK-DS-120 |
氙气灯箱数量
Quantity of Lamp Houses |
|
2台
2 sets |
氙气灯管功率
Flash Lamp Energy |
|
每灯盒60W,合计120W功率
Approx. 60w / each,
totaling 120w |
氙气灯管寿命
Flash Tube Life |
|
1300 hours
continuous @3000fpm |
距离2米远照射面积Illuminated Area @200cm
|
|
每灯盒可照射直径100cm面积,两灯盒合影可照最大直径200cm面积
Approx. 100cmψfor
each house. |
闪光持续时间
Flash Duration |
|
6~20 μsec. |
产品尺寸/重量
Dimensions & Weight |
19(L) x 12(W) x 13(H)cm
1.7Kg |
16(L) x 19(W) x 19(H)cm
3.8Kg |
工作电源要求
Power Supply |
AC220V or AC110V
±10%, 50/60Hz. |
配件
Accessories |
2只备用灯管,
2根信号线缆, 中英文说明书
2 pcs. of spare
lamps, 2 pcs. of cables and Instruction Manual & Warranty |
|
