Model No.: |

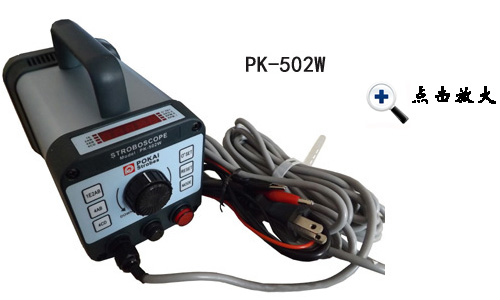

PK-502W |
产品应用类别
Applications |
喷气(水)织布机/纺织机专用型频闪仪,具有0度仿真,0~359度相位角移动调整功能;如只需观察纺纱锭子或测线轴的转速可参选:1. 手提便携式频闪仪PK-DS-112U系列;2. 电池充电式频闪仪PK-DS-112E和PK-506B系列,详情点击查看或来电垂询!
For Picanol, Toyota, Sulzer,
Tsudakoma, Vammatex and Somet Weaving Machines |
频率范围Flash Rate Ranges |
54.0 ~ 2100.0FPM(单位:次/分钟) |
解析度Resolution |
±0.1FPM (54.0~2100.0) |
相位移动
Phase Shift |
0°
~
359°
相位移动,1°分辨率
0° ~ 359°, with resolution of ±1° |
精确度Accuracy |
±0.005% of setting |
数字显示屏
Display |
5位LED数字显示屏
5-digit LEDs to display FPM value
and phase degree |
Divide Function 单管/多管检测 |
1/1, 1/2, 1/4, 2/4 (positive),
2/4 (negative) with phase shift |
外部模式触发信号电压
External Input |
0 to 5 Vdc (15Vdc max.) TTL
compatible, positive edge triggered |
输入阻抗Input Impedance |
10 KΩ |
氙气灯管功率Flash Energy |
290mJoule @ 1000FPM, Max. 10W |
灯管寿命Flash Tube Life |
1500 hours @ 1500rpm |
距离20cm远照射面积
Illuminated Area @ 20cm |
直径260mm照射面积
Approx. 260mm diameter |
闪光持续时间Flash Duration |
6~20μs. |
工作电源要求Power Supply |
AC220V or AC110V ±10%, 50/60Hz |
产品尺寸/重量
Dimensions / Weight |
109(H) x 109(W) x 167(L)cm; Approx. 1.0Kg |
配件
Accessories |
2只备用保险丝,中英文说明书
2 pcs. of spare fuses and
Instruction Manual |
|
Due to improvement, specifications may change
without notice. |
